Features:

Product supports single channel capacity and internal resistance measurement

Support separate charging, separate discharging, up to 9 charging and discharging cycles in automatic mode

Stopping and discharging voltage is adjustable in 11 steps

Using DC two-wire method to test the internal resistance in English and Chinese can be switched

The maximum charge and discharge flow is about 1A

Parameters:

Power supply: DC5V or 18650 battery (self prepared)

Applicable batteries: batteries that meet the stopping discharge voltage of 2.5~3.5 V and 4.2 V charging are applicable

Power supply interface: Type-C , self provided power supply line

System language: Chinese (default), English

Test quantity: 1 circuit charge and discharge measurement (only the right battery)

Internal resistance measurement: Yes, DC two-wire method is used to measure the internal resistance

Charging function: support, automatic cut-off charging when fully charged

Discharge function: support, automatically stop when conditions are met

Automatic charging and discharging: Yes, the battery is fully charged at the end of automatic mode

Loop charging and discharging: supported, adjustable for 1~9 cycles

Status prompt: Supported

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V

3.3V, 3.4V and 3.5V are adjustable in 11 gears

Discharge current: two circuits of resistance, the maximum current is about 1A, which cannot be adjusted and does not support independent alteration

Charging voltage: controlled by special battery charging chip, the maximum charging voltage is about 1A, and the full charging voltage is 4.2V

Save in case of power failure: save only the setting parameters, not the metering data

Product weight: 80g (net weight)uff0c 120g (including package)

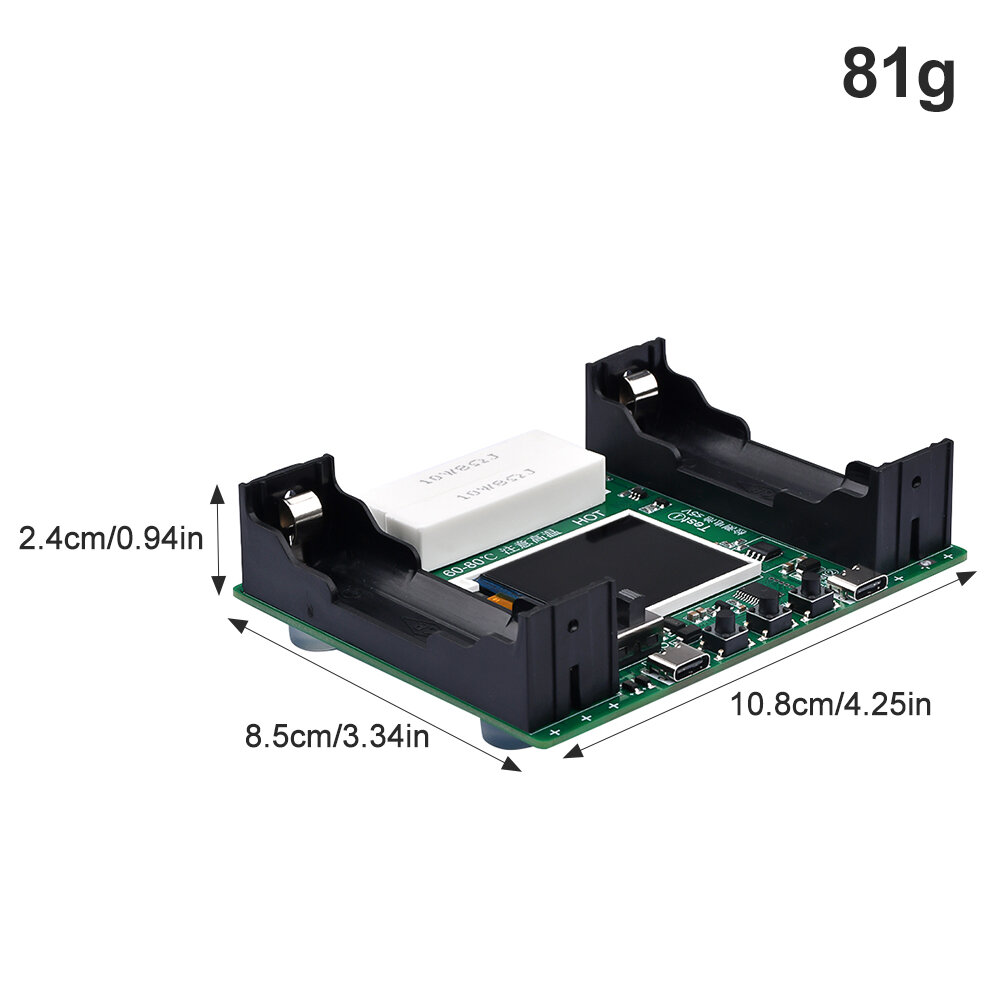

Product size: 110 u00d7 88 u00d7 30mm

Package size: 153 u00d7 one hundred u00d7 42mm (corrugated box)

Note:

During use, charging and discharging process will generate local high temperature, please ensure that the use of the environment is open and uncovered, if you can increase the fan cooling is better.

In order to ensure that the battery clamps firmly, 18650 battery holder using compact battery holder for flat battery measurement!

Does not support lithium iron phosphate battery charging

Package Included:

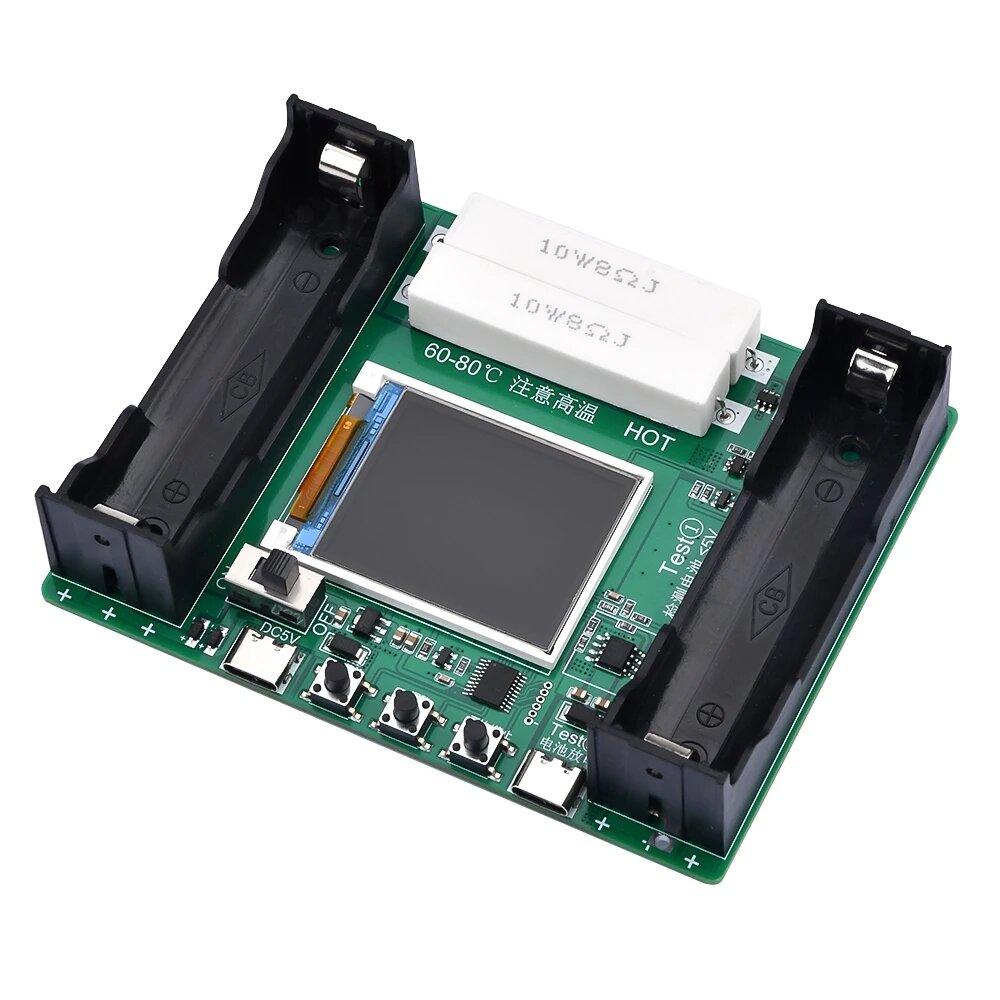

1 x 18650 Battery Capacity Internal Resistance Tester
